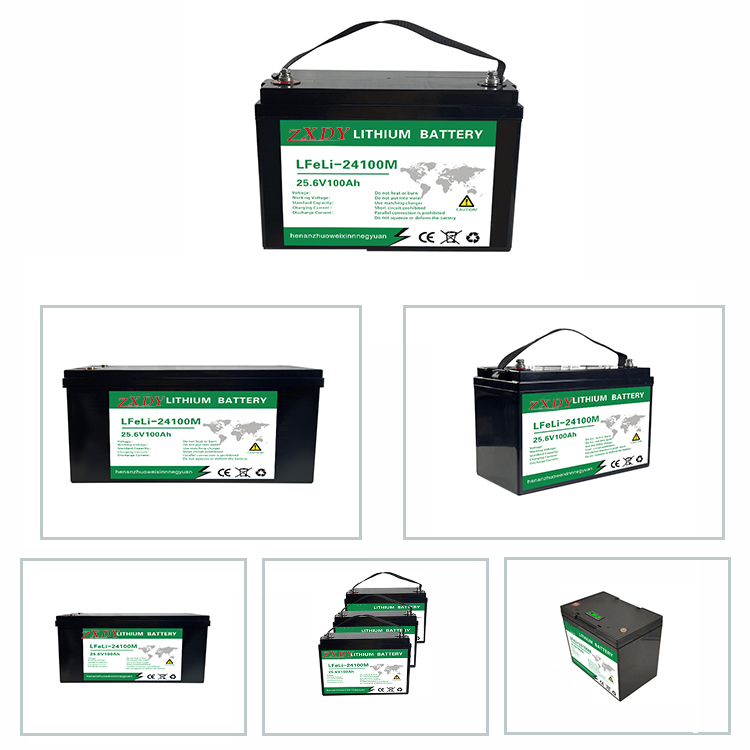

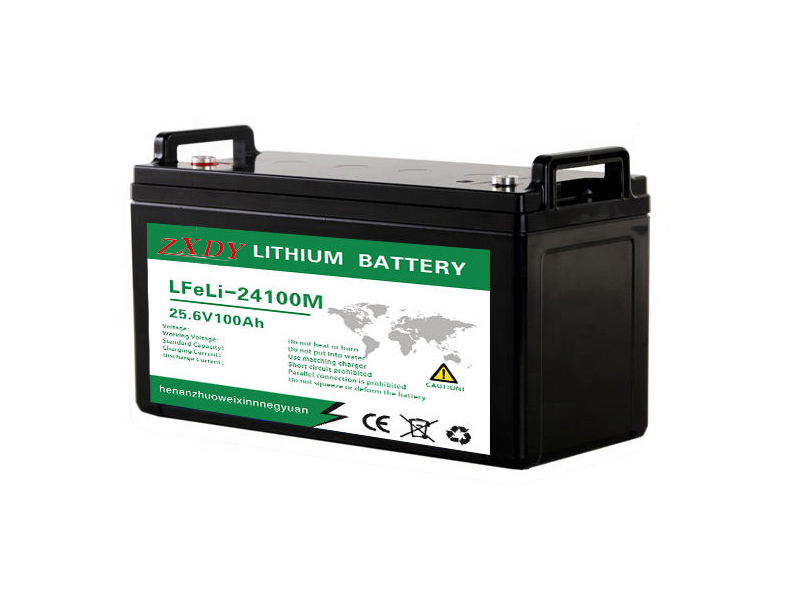

Lifepo4 agv battery 24v 100ah lithium ion battery pack

Lifepo4 agv battery 24v 100ah lithium ion battery pack

Battery Type：LiFePO4

Usable Capacity：2560 Wh @C2, 25°C

Nominal Voltage：25.6 VDC

Operating Voltage Range：17.6VDC – 29.2 V DC

Operating Temperature Range：-20°C – 60°C

Cycle Life @ 100% DoD：> 3500 cycles (2560Wh @C2, 25°C)

Cycle Life @ 80% DoD：> 5000 cycles (2048 Wh @C2, 25°C)

Dimensions (mm)：524mm x 240mm x 220mm (W x D x H)

Weight (kg)：Appro 25 kg

Charge Current (max.)：100A continuous(25°C)

Discharge Current (max.)：100A continuous(25°C)

Over-charge protection：3.75V

Over-charge release：3.55V

Under-discharge protection：2.20V

Under-discharge release：2.70V

Over-current protection：140A

Over-current delay：30S

Short circuit protection：Have

Short circuit protection delay：500 uS

Charging over-temperature protection：55℃

Charging under-temperature protection：-5℃

Discharge overtemperature protection：70℃

Balance current：≤100mA

Balance Condition：≥3.6V

Self-discharge Rate：< 3% per month

IP-protection：IP65

24V 100Ah AGV battery pack selected from Dongguan zhexin Daya
