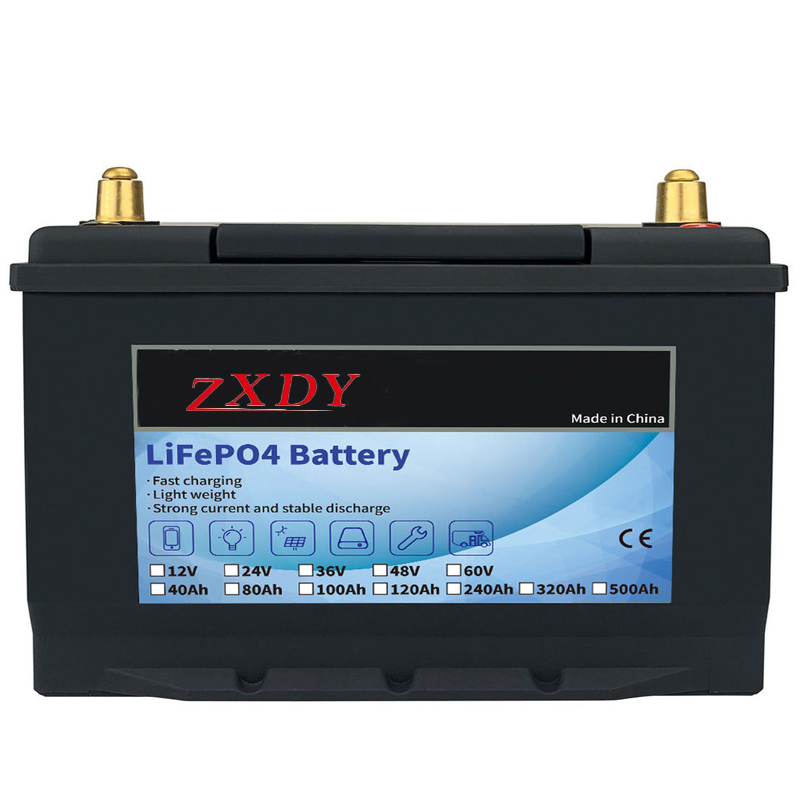

1Lifepo4 battery 24v 40ah 60ah 80ah 100ah lithium ion battery pack for ev ups agv
Product description
Battery Prismatic cell
Rate Voltage：12.8V
Cycle life >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.

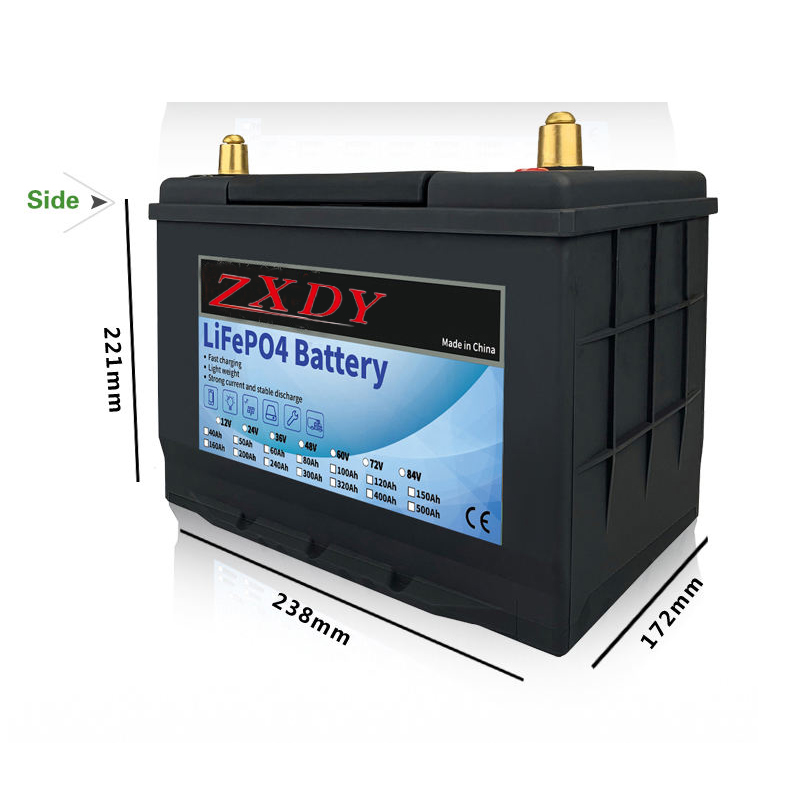

Battery Size：260*172*224mmmm or customize
Battery Weight：9KG
Combination method：4S1P
Terminal：M8/M6
Water Dust Resistance：IP55
Charging mode：0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
Standard Charge current：0.2C
Max Charge Current：0.5C
Discharging current 1C
Peak current：160A(<3S)
Environmental Charge Temperature：0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature：-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature：0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
